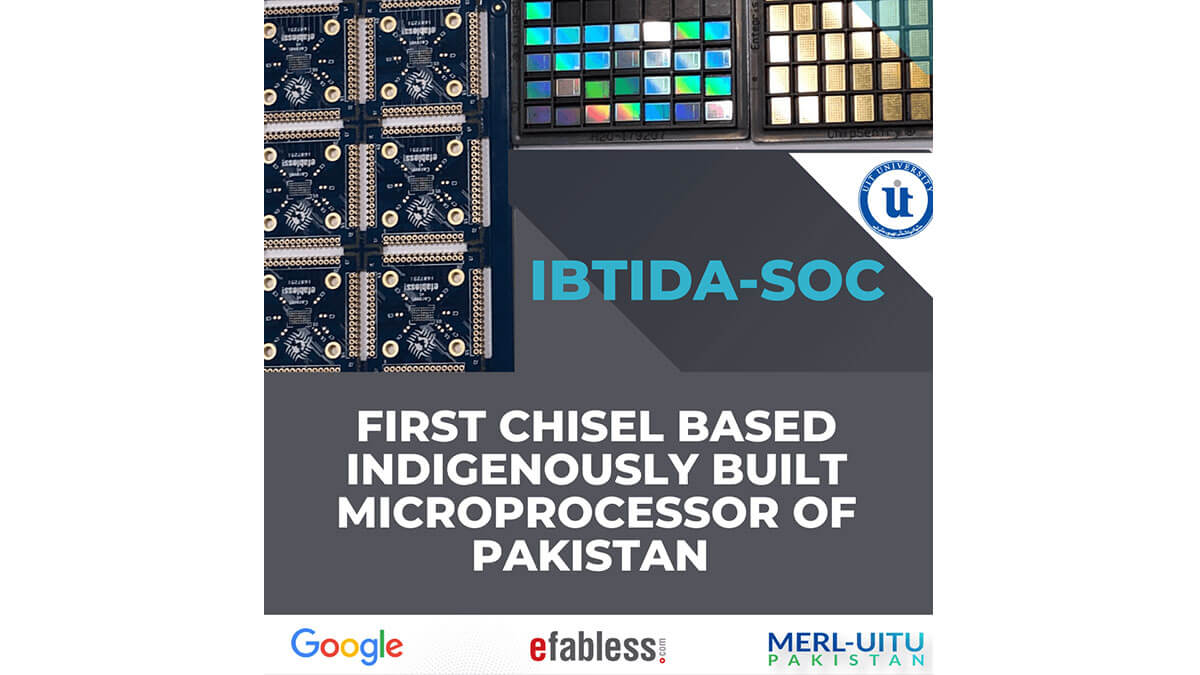

First CHISEL based Indigenously Built Microprocessor of Pakistan

“Ibtida” means “The Beginning”, this System on a Chip (SoC) is the start of many RISC-V-based SoCs to come. It is the first CHISEL-based chip that have been taped out from Pakistan, designed by Muhammad Hadir Khan, Sajjad Ahmed, and Usman Zain; engineering graduate and undergraduate students respectively. The physical layout of the design is achieved by Aireen Amir Jalal, who is also an engineering graduate. Ibtida is a simple SoC, with GPIO as a peripheral, external instruction, and data memories, connected with the Tilelink interconnect. It is built around RISC-V-based 5 stage pipelined core Buraq-Mini, all developed from scratch using CHISEL. FEATURES:

RV32IM extension support.
5 stage pipelined core.
Separate instruction and data memories (each 256 Bytes).
TileLink Un-Cached Lightweight (TL-UL) Bus Protocol.
GPIO peripheral with 30 I/Os connected to the I/O pads.
